250℃ High Temperature Vertical Hot Air Curing Oven with Even Airflow for Epoxy Resin

Maximize Efficiency in Confined Spaces: The Vertical Curing Oven

Vertical curing oven for PCB, semiconductor & PV manufacturing. Multi-layer design, N2 inert atmosphere, precise temperature control, 60% less footprint.

In modern electronics manufacturing, space equals money, and yield equals profitability. To meet the high standards of Conformal Coating, Underfill, and LED Encapsulation processes in SMT assembly, we introduce this revolutionary Vertical Curing Oven. More than just a Vertical Reflow Oven, it is the ideal Vertical Thermal Furnace for achieving high-density, double-sided processing.

Product Advantages& Differentiators

• 1. Revolutionary Vertical Transport Design, Prevents Component Dropping
  Traditional long tunnel ovens often struggle with double-sided PCBs. Due to the opposing forces of gravity and component orientation, large or heavy components are prone to shifting or falling during the second reflow or curing process.

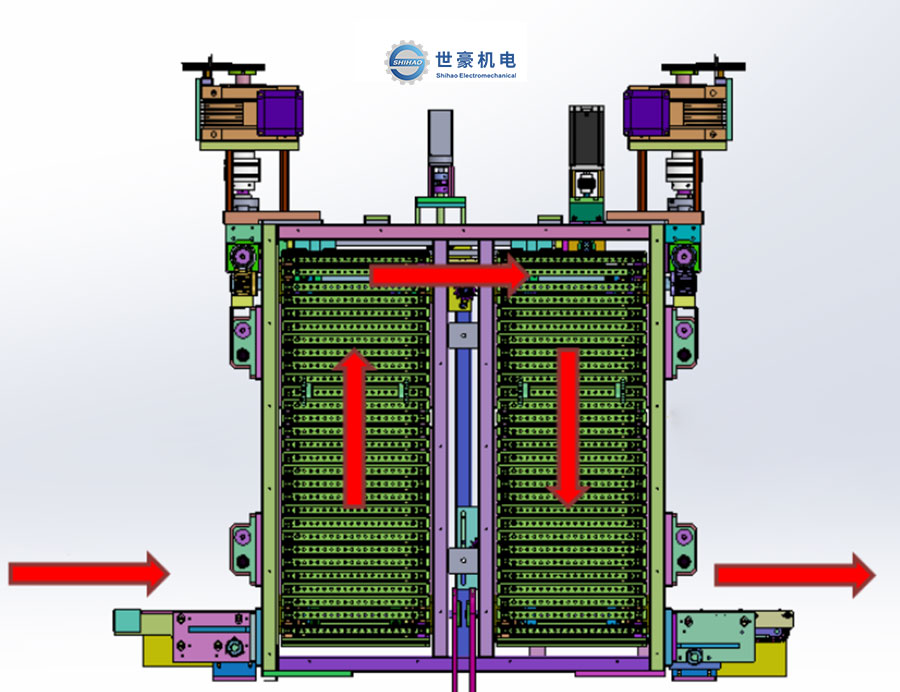

• Gravity-Friendly Transport: Our Vertical Curing Oven utilizes a vertical chain conveyor system, transporting PCBs in an upright orientation. This ensures component stress aligns perfectly with gravity, fundamentally solving the challenge of curing double-sided boards and significantly improving soldering and curing yields.

• 2. Save Up to 50% Floor Space
  In a high-value SMT workshop, equipment footprint directly impacts rental costs and production line layout flexibility.

• Floor Space Saving: Compared to traditional horizontal tunnel ovens, the vertical structure reduces the equipment footprint by up to 50%. This allows you to integrate more functional units within your limited factory space and optimize your production workflow.

• 3. Precise Hot Air Circulation & Temperature Control
  As a high-performance Vertical Thermal Furnace, our system is equipped with an advanced forced convection heating system.

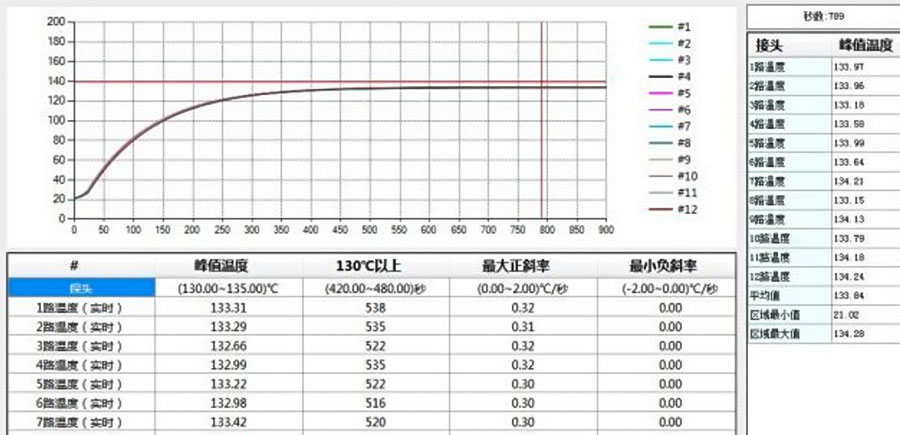

• Uniformity: The vertical airflow design ensures exceptional temperature uniformity across the chamber (±3°C). Whether you are thermally curing conformal coatings or hardening underfill materials, every product receives consistent heating, eliminating issues of under- or over-curing.

Application Scenarios

This versatile Vertical Reflow Oven is engineered for critical post-printing and post-coating processes, widely used in:

• SMT PCB Assembly: For curing SMT adhesive (red glue) and thermally conductive adhesives.

• Conformal Coating: Accelerating the curing process of acrylic, polyurethane, and silicone conformal coatings to increase production throughput.

• Underfill: Providing reliable underfill curing for CSP and BGA components to enhance shock resistance and reliability.

• LED Encapsulation: Curing adhesives and encapsulants for LED lead frames or COB packaging.

Why Choose Us?

Whether you need post-printing curing equipment for SMT PCB Assembly or a solution to manage complex double-sided PCB production, our Vertical Curing Oven offers unparalleled flexibility and reliability compared to traditional equipment. Contact us today to learn how our vertical technology can upgrade your production line, reduce costs, and improve efficiency.
